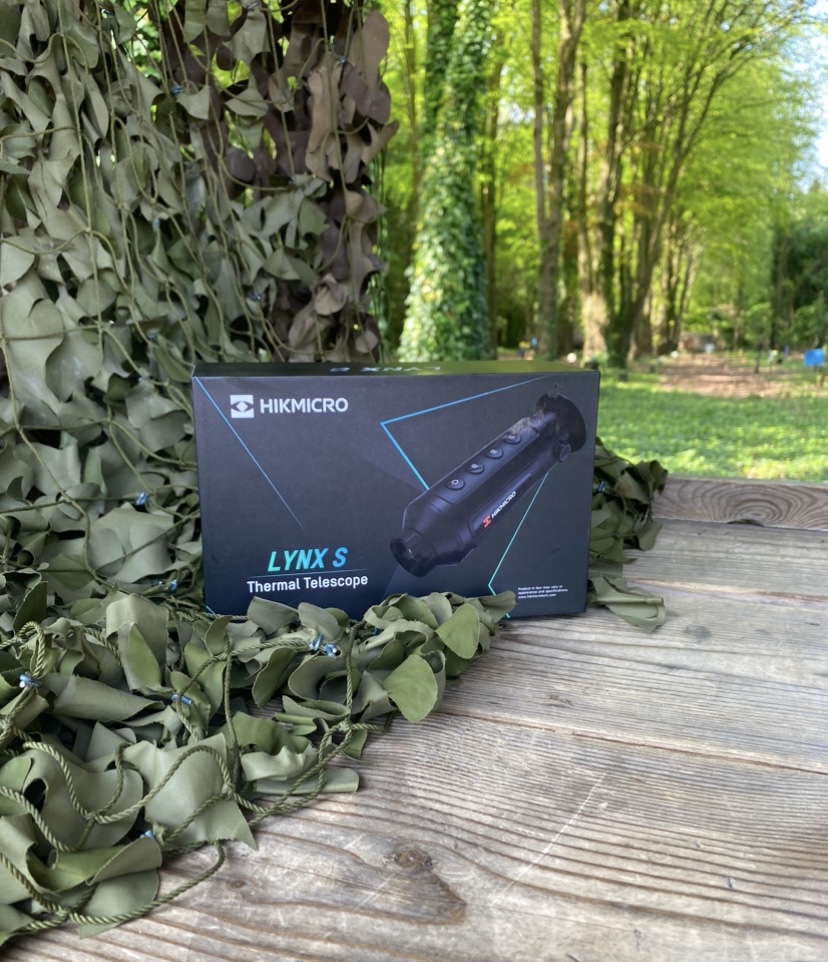

HIK Lynx S PRO Thermal

SPECIFICATION

MAIN

-Sensor; 256x192px

-Objective Lens, Focal Length = 10mm

-Detection Range = 458m

SENSOR

-256x192 Resolution Pixels

-Uncooled Focal Plane Arrays

-Frame Rate = 25 Hz

OPTICS

-Objective Lens = F1.0

-Optical Magnification x1

-Digital Magnification x1, x2, x4, x8

-Field Of View = 18.00 Degrees X 13.55 Degrees

DISPLAY

-5.08mm LCOS

-Pixel Resolution = 720 X 540

-Colour Palettes = Black Hot, White Hot and Red Hot

VIDEO RECORDER

-Built In 8GB Memory

WEIGHT AND SIZE

-158mm X 61mm X  57mm

-Weighs 0.26kg

POWER SUPPLY

-8 Hours Continuous Battery Running Time

-USB-C Charging Interface

-Battery Capacity After 1000 Cycles = 80%

WARRANTY

-Main Unit = 3 Years

-Battery Unit = 2 Years

FEATURES

-10mm Focal Length

-256 X 192px Sensor

-12um Pixel Pitch

-Pocket Size

-Wifi

458 Detection Range-Human Size

-25hz Refresh Rate

-4 Colour Palletes

-Around 150m Detection Range

-35mk Sensitivity
